Homogenizing furnace

Product Name:	Homogenizing furnace
Update time	2022-09-27

Contact us

Detailed Description

Process description:

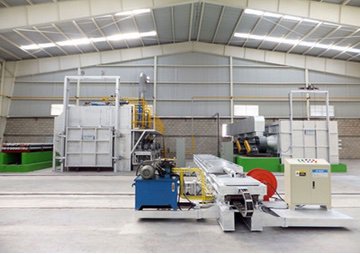

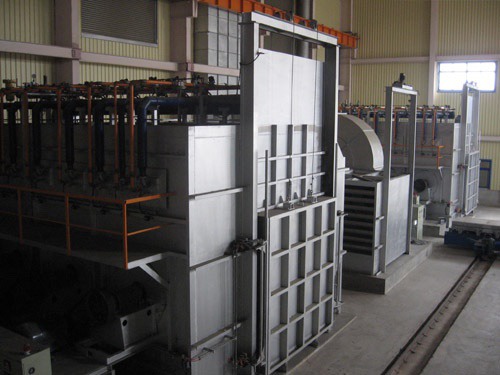

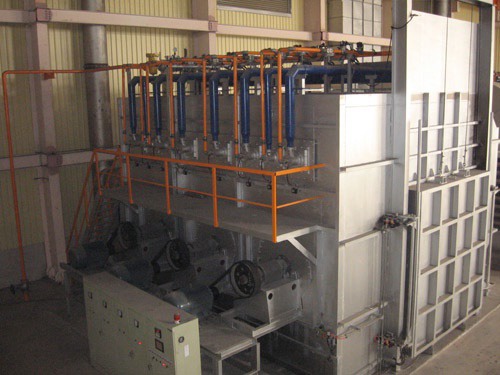

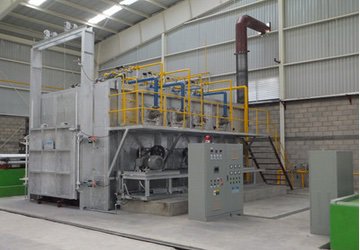

The homogenizing furnace is a special equipment for heat treatment after casting aluminum billets. It aims to eliminate the residual stress and metallographic structure unevenness generated during casting. It is an indispensable equipment for improving the quality of aluminum profiles. After homogenization, the internal components (Mg2Si and Fe) are uniform, the production process saves mold consumption, reduces the pressing force, and improves the surface mechanical quality of the finished product. A homogenized furnace group contains a homogenizing furnace, a three-dimensional conveying vehicle and a wind. The composition of the water mist cooling chamber. The homogenizing furnace is responsible for heating the aluminum rod to about 570±5°C (or process temperature) according to the process requirements, and then rapidly cooling in a short time in the cooling chamber to achieve homogenization effect.

No.	Model	Total load	Cycle mode	Heating areas	Productivity	Energy consumption	Fan power
1	10T	Set tonnage ±5%	Vertical circulation	2 areas	4-6h per furnace (or by process)	≦30m³/T.Al	15-22kw/set
2	15-20T	Set tonnage ±5%	Left and right lateral circulation	3 areas	4-6h per furnace (or by process)	≦25m³/T.Al	22-30kw/set
3	25-30T	Set tonnage ±5%	Left and right lateral circulation	3 areas	6-8h per furnace (or by process)	≦25m³/T.Al	27-45kw/set
4	35-60T	Set tonnage ±5%	Left and right lateral circulation	3 areas	6-10h per furnace (or by process)	≦25m³/T.Al	55-75kw/set
