Single billet heating furnace

Product Name:	Single billet heating furnace
Update time	2022-09-27

Contact us

Detailed Description

Process description:

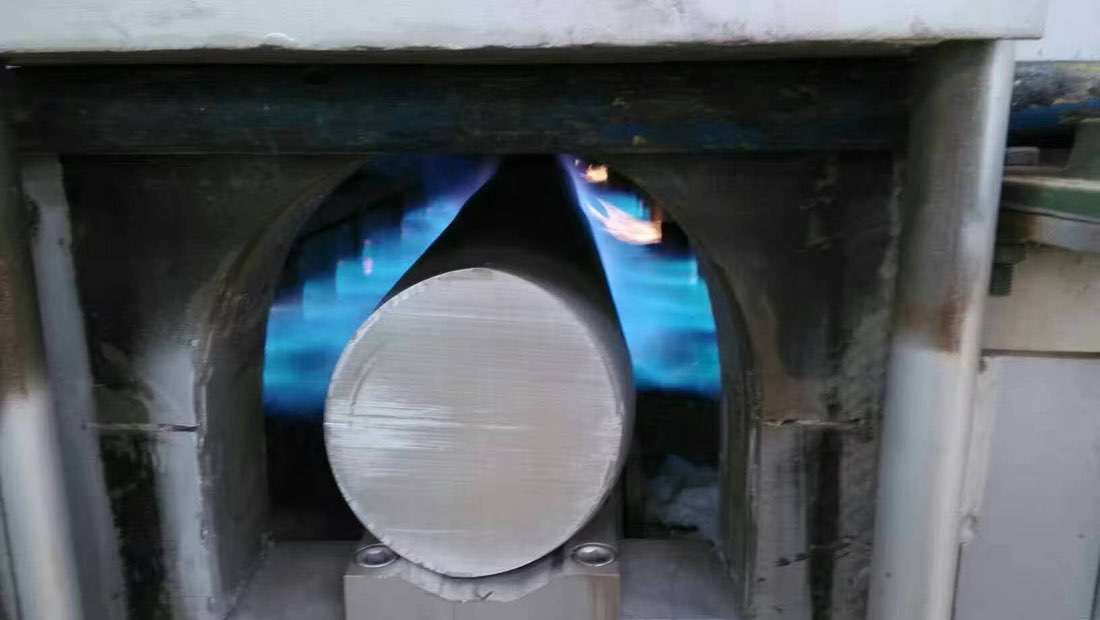

The single billet heating furnace provides aluminum billet suitable for temperature requirements for the extrusion machine, which has the advantages of fast heating speed (the extrusion of the normal temperature aluminum billet into the furnace for about 30 minutes), flexible scheduling and high automation. Particularly suitable for small and diverse varieties of industrial profiles extrusion. The whole line can be equipped with auxiliary equipment such as upper rod manipulator, heating rod manipulator and peeling machine.

Technical parameters：

No.	Model	Aluminum rod	Heating time	Heating areas	Production frequency	Energy consumption	Power
1	600-1450T	Φ90-Φ152	≦30min	3 areas	90 S/bar	≦35m³/T.Al	30kw
2	1650-2000T	Φ178-Φ203	≦30min	4 areas	120S/bar	≦30m³/T.Al	50kw
3	2500-3600T	Φ228-Φ320	≦30min	5 areas	120S/bar	≦25m³/T.Al	65kw
4	4000-6000T	Φ330-Φ406	≦30min	6-7 areas	150S/bar	≦25m³/T.Al	110kw
Note：The long rod heating furnace can be equipped with a hot shear or a hot saw, and the aluminum rod can be cut short or saw short rod as required. The short rod heating furnace can be equipped with a cold rod sawing machine to cut the short rod and then enter the furnace for heating. It can also be used to cut the short rod offline and then manually load it into the furnace for heating.
